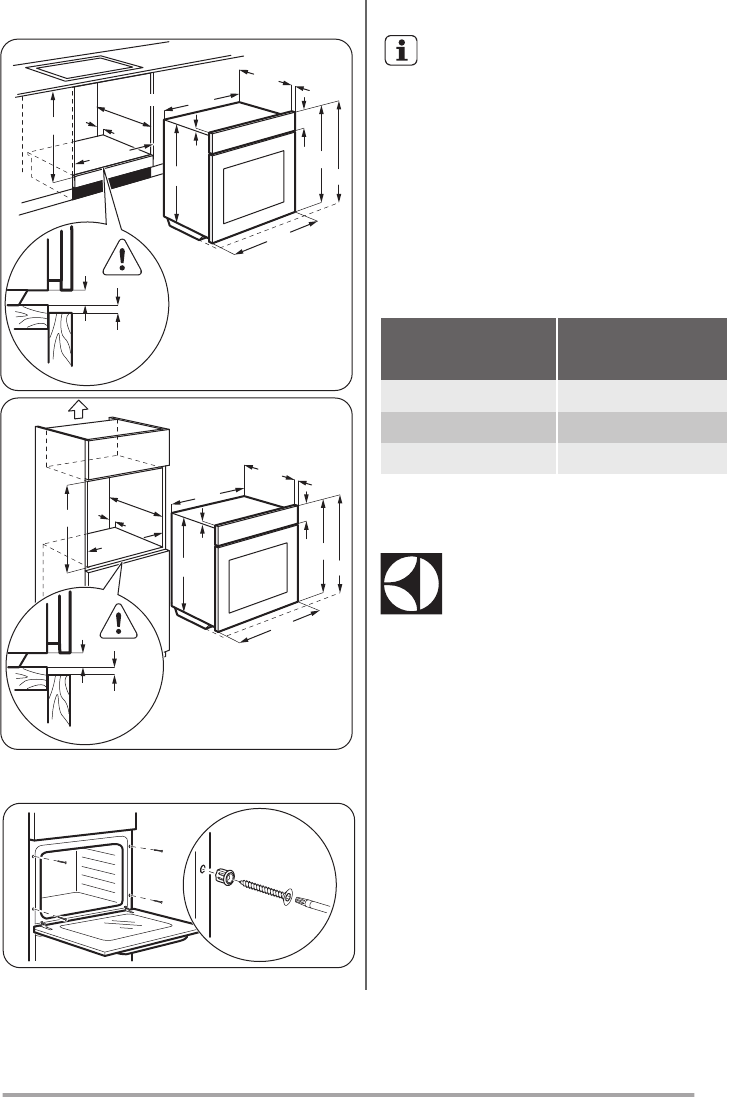

Building In
589
598
594
114
19
21540
570
558
min. 550
20
600
min. 560
3
9
Securing the appliance to the cabinet
A
B
Electrical installation
The manufacturer is not responsible if
you do not follow the safety precautions
from the Safety chapters.
This appliance is supplied with a main plug and a main
cable.
Cable
Cable types applicable for installation or replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-
F (T90), H05 BB-F
For the section of the cable refer to the total power on
the rating plate and to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must be 2 cm
longer than phase and neutral cables (blue and brown
cables).
